BoWex 65 FLE-PA D314.25 Coupling

$350.00

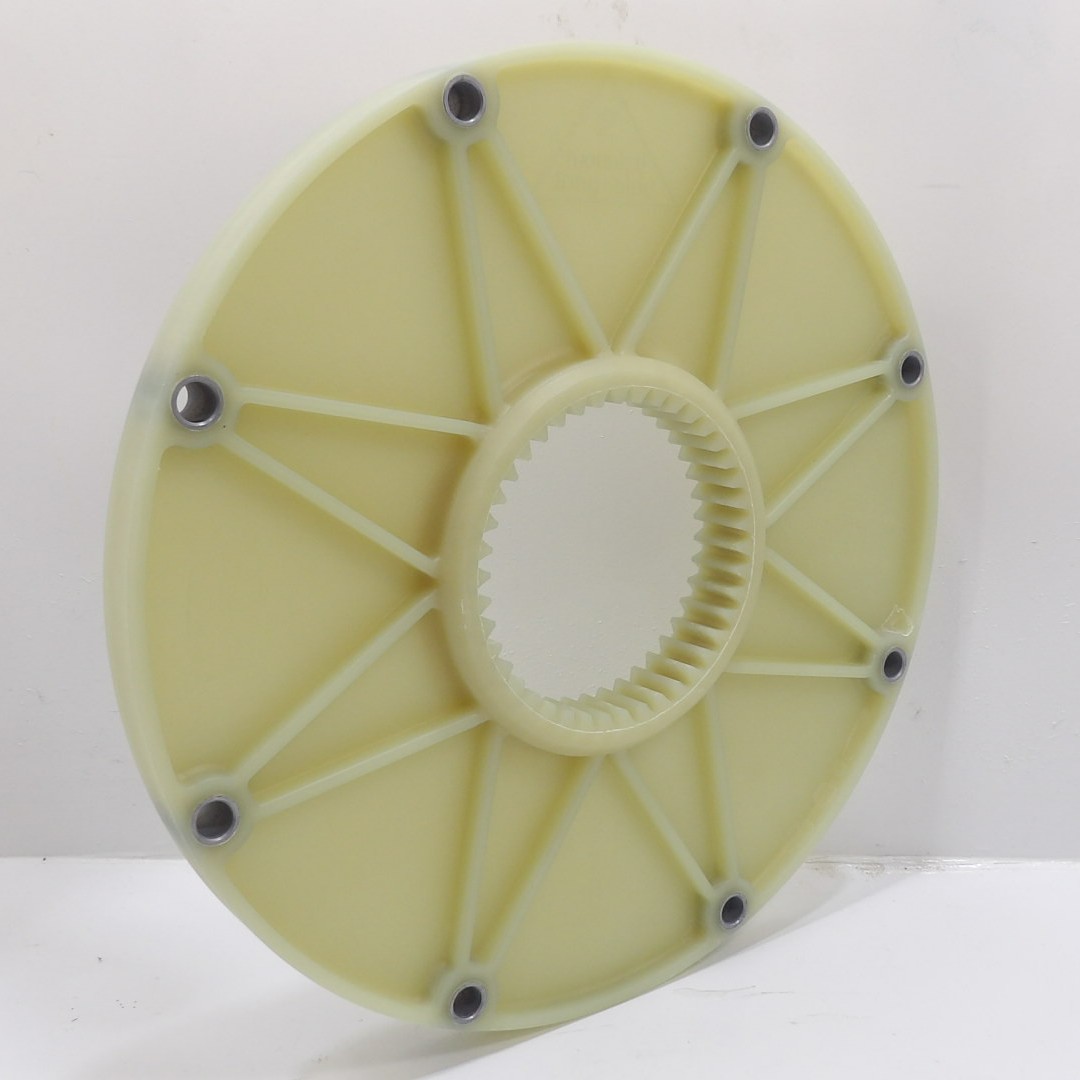

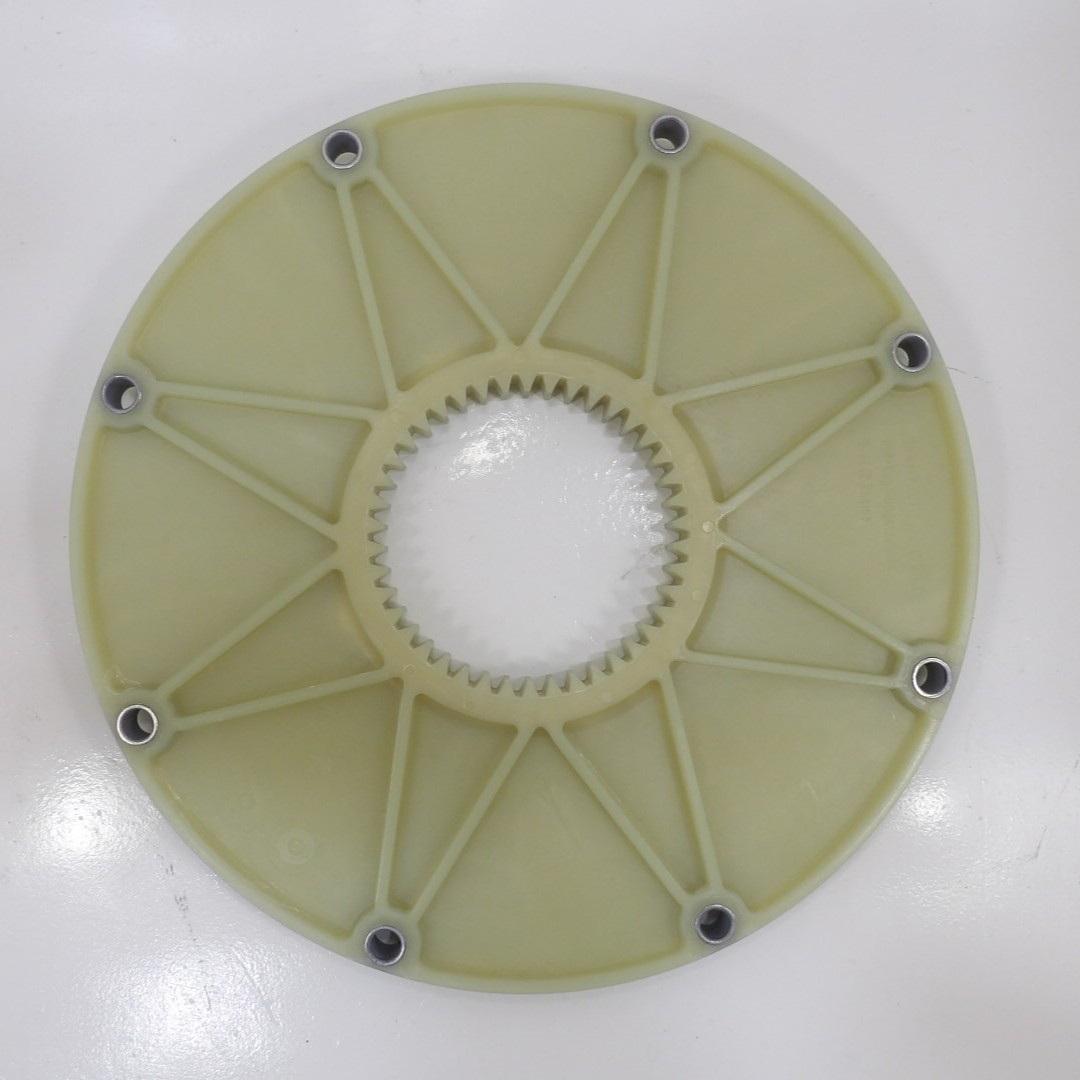

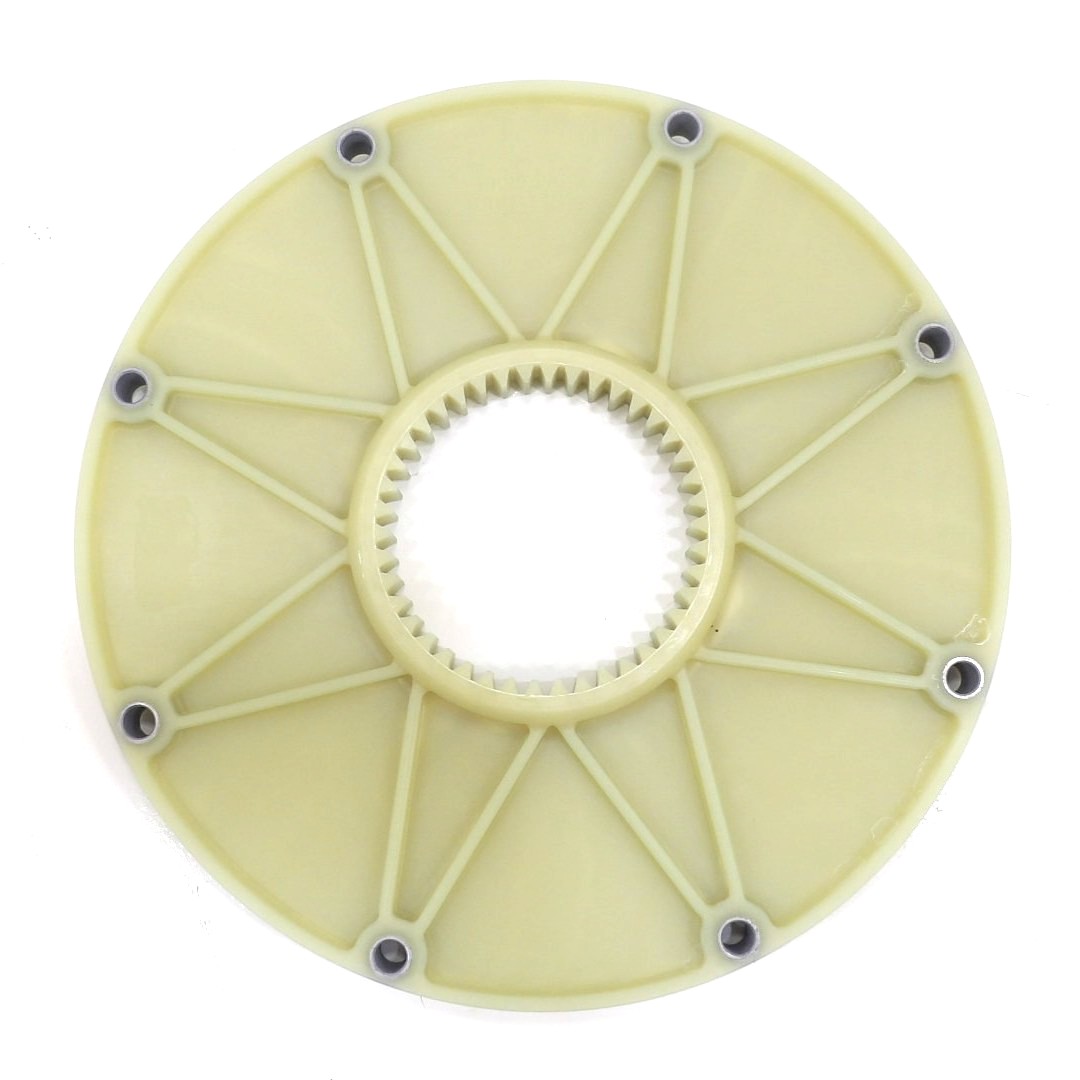

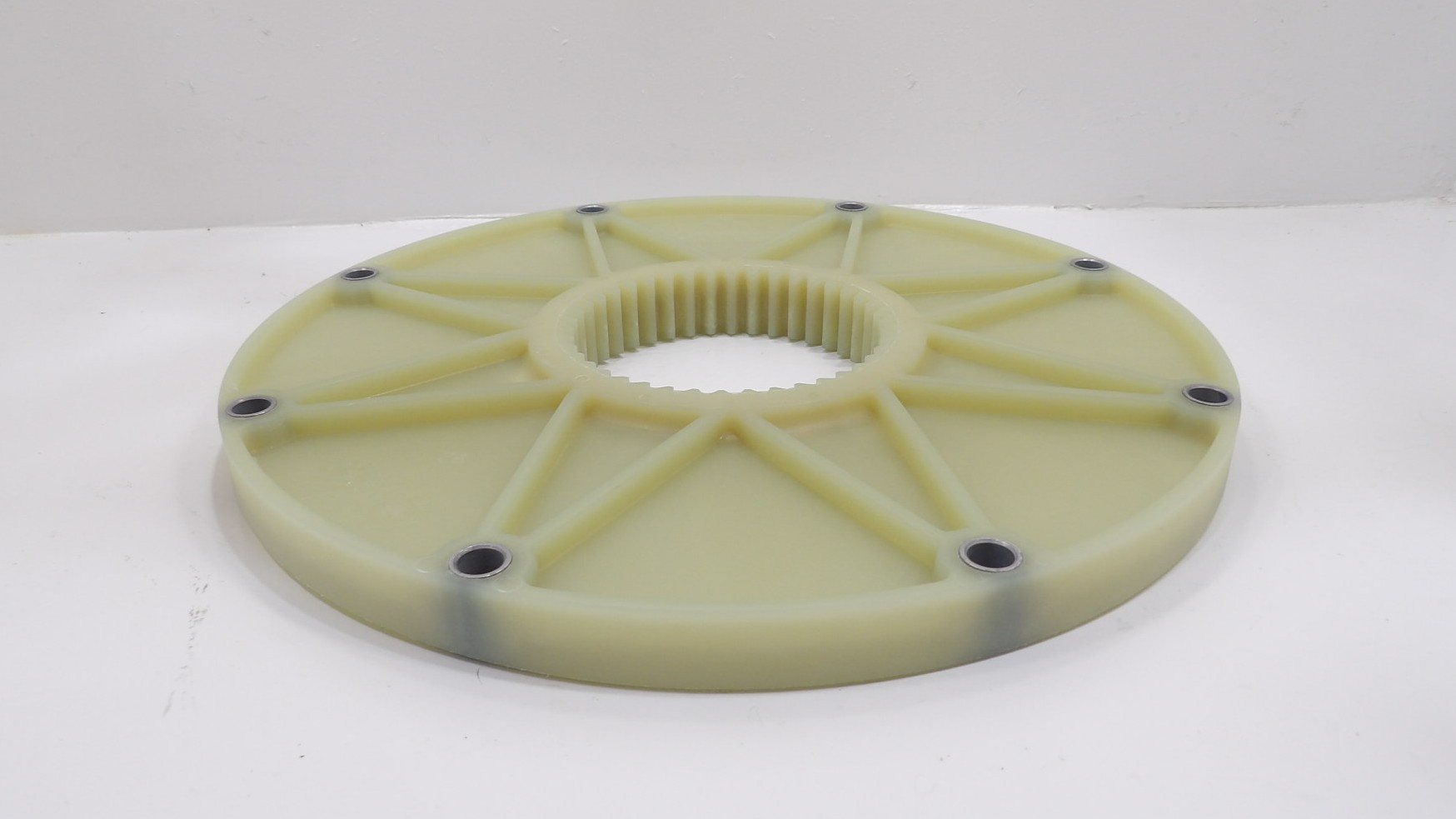

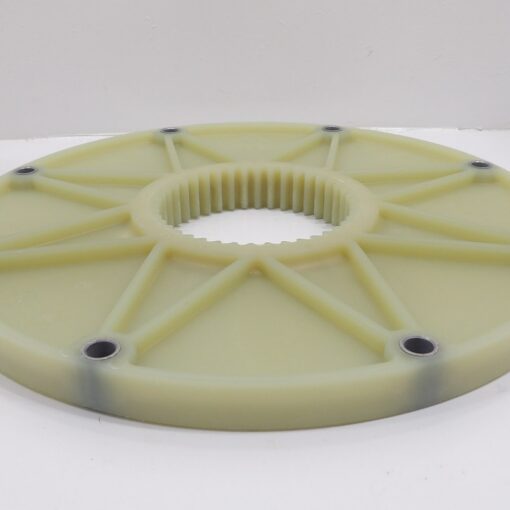

BoWex 65 FLE-PA D314.25 KTR Coupling Flange is a factory OEM glass fiber reinforced polyamide flange with a 42-tooth gear ring for SAE 10 flywheel diesel engine drives. Torsionally stiff, plug-in, lubrication-free.

Same-day shipping on in-stock orders.

SKU: 65 FLE-PA D314.25 Category: Tag: Brand:

The BoWex 65 FLE-PA D314.25 is a factory OEM KTR coupling flange for diesel engine drives, linking the flywheel to a hydraulic pump through a curved-tooth gear connection. The flange is molded from glass fiber reinforced PA6-GF25 polyamide with a 42-tooth internal gear ring formed into the flange body. It bolts to an SAE 10 flywheel and accepts the matching BoWex curved-tooth steel hub, creating a torsionally stiff, plug-in drive that compensates for axial, angular, and radial misalignment.

The gear mesh runs dry, with no lubrication and no alignment tools required at installation, keeping engine-to-pump service fast in the field. BoWex FLE-PA flanges drive construction machinery, road rollers and compaction equipment, generator sets, and hydraulic power units. A worn flange shows up as backlash rattle at idle and polyamide dust around the gear ring; replace it before the toothing damages the mating hub.

Also referenced as 65FLE-PA-D314.25 and BoWex 65 FLE PA D314.25. Call (903) 768-1111 to match the flange to your engine and pump combination. Same-day shipping on in-stock orders.
