Transfluid RBD 7S Coupling Assembly

Description

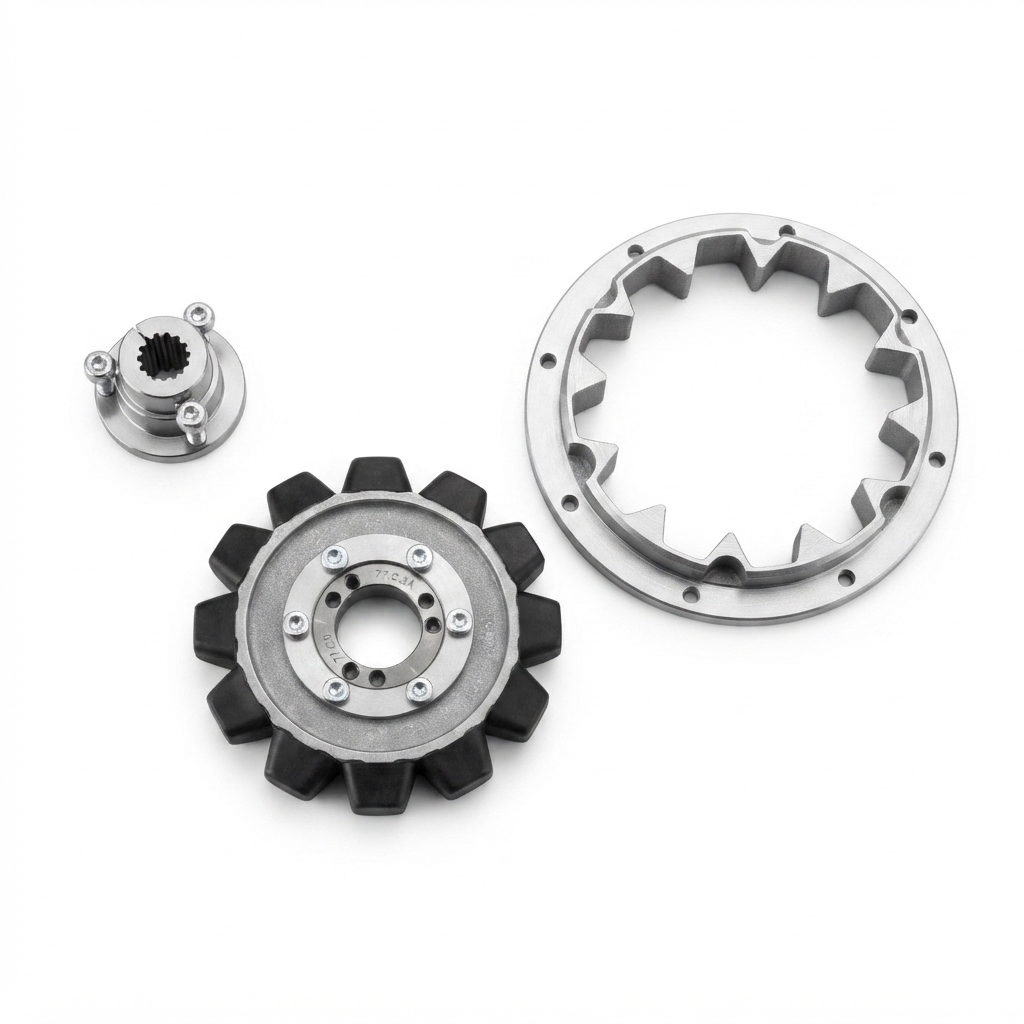

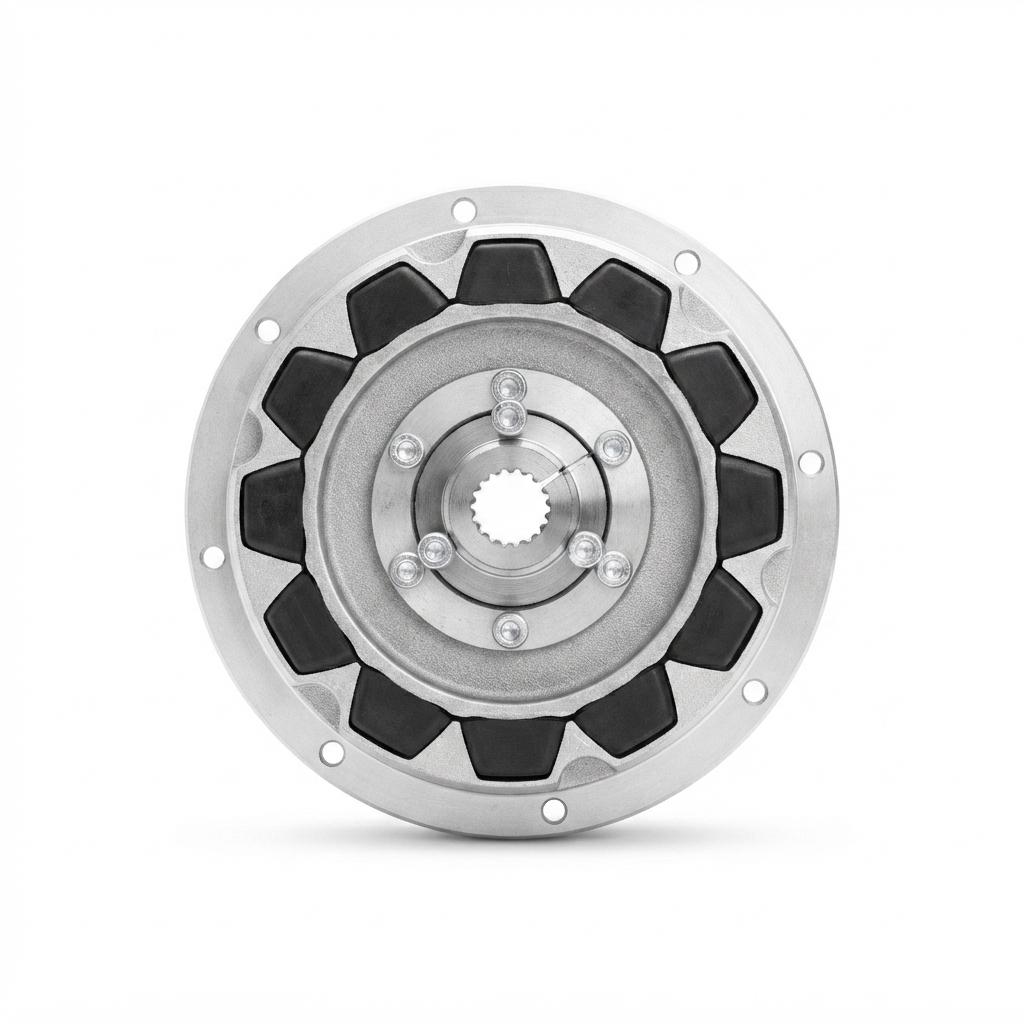

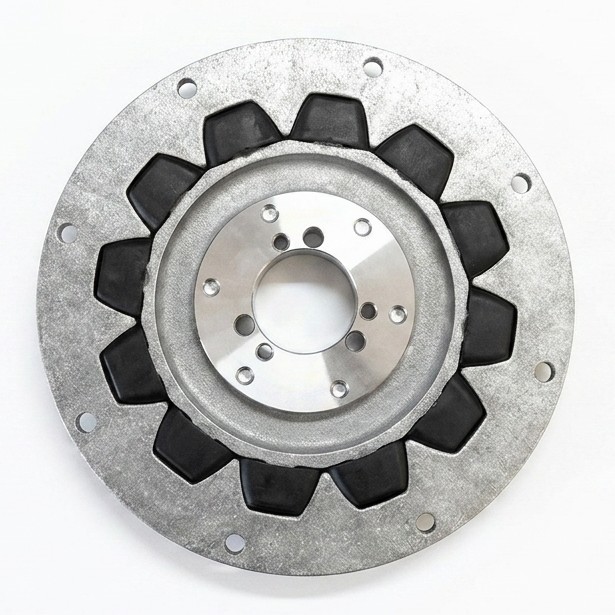

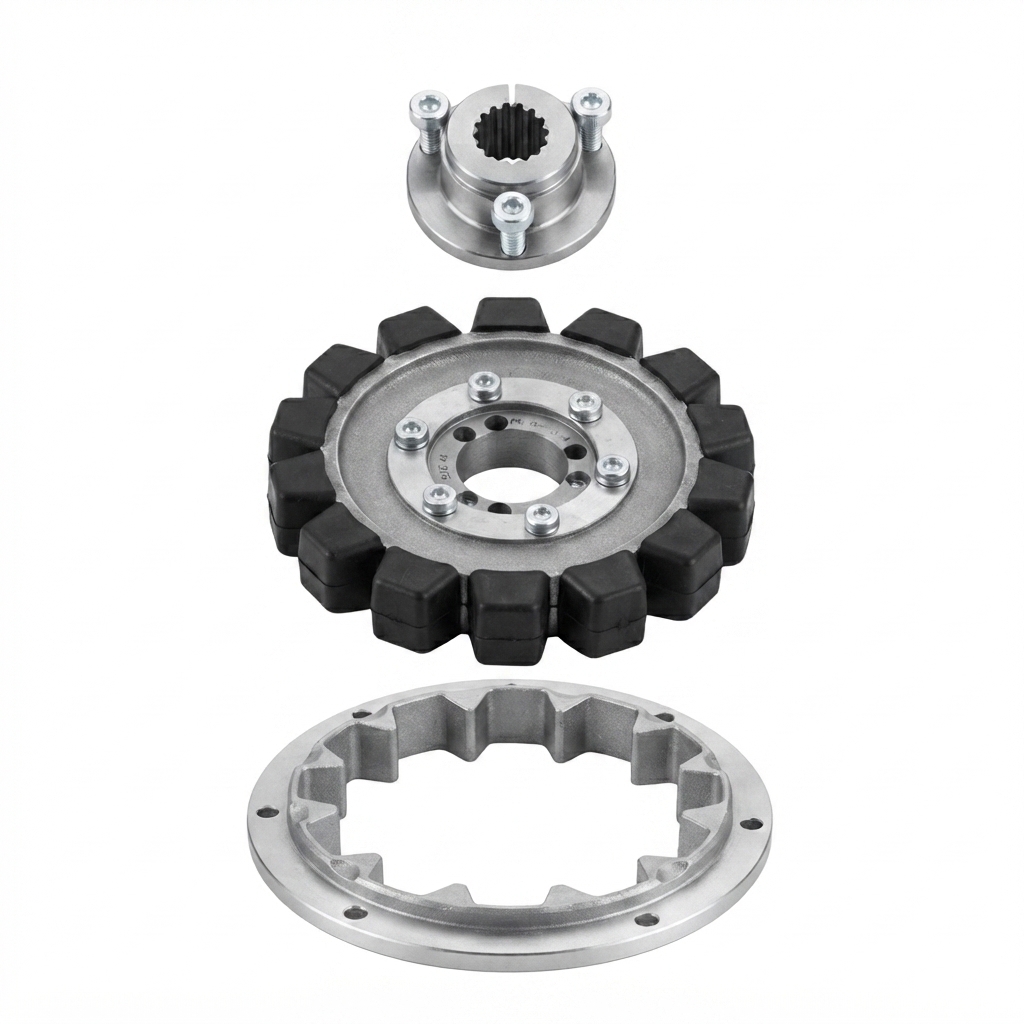

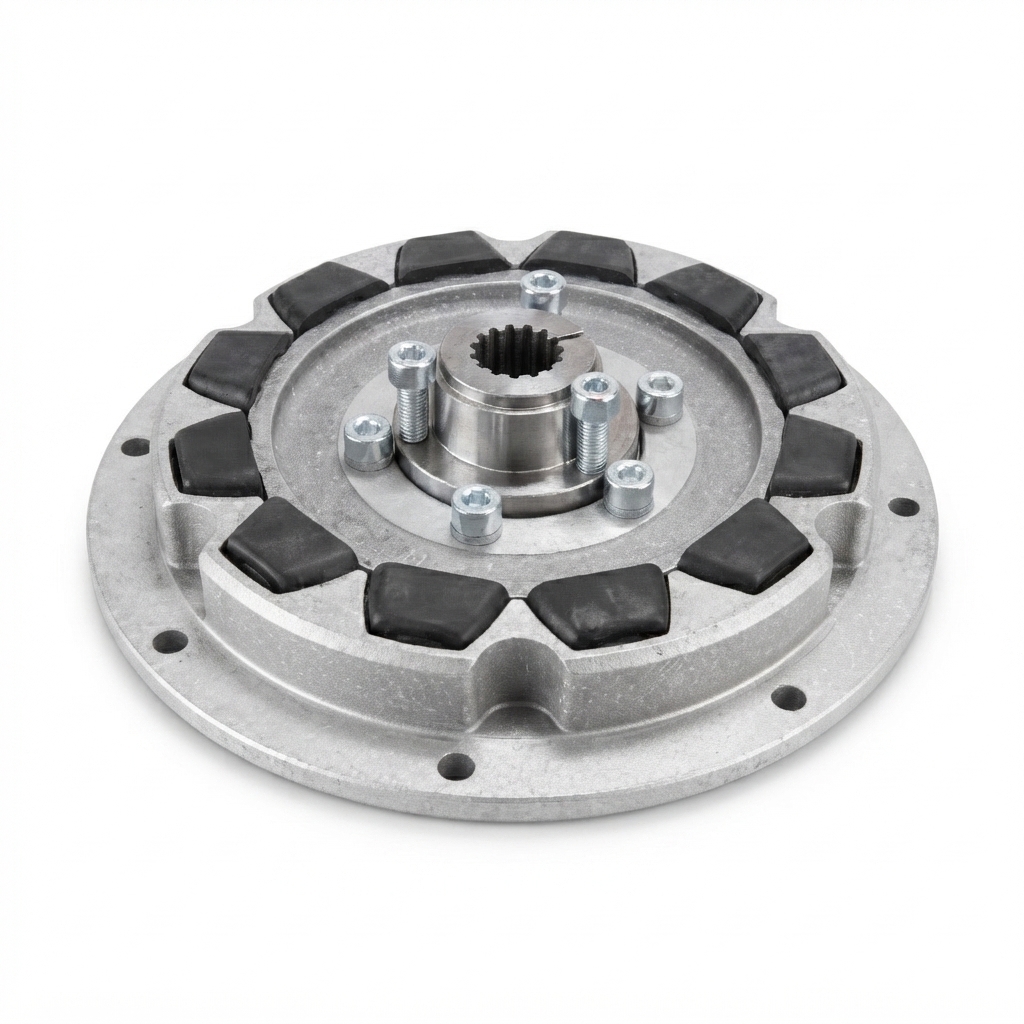

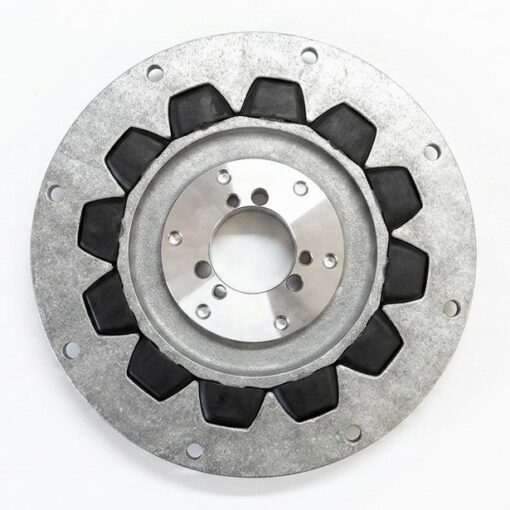

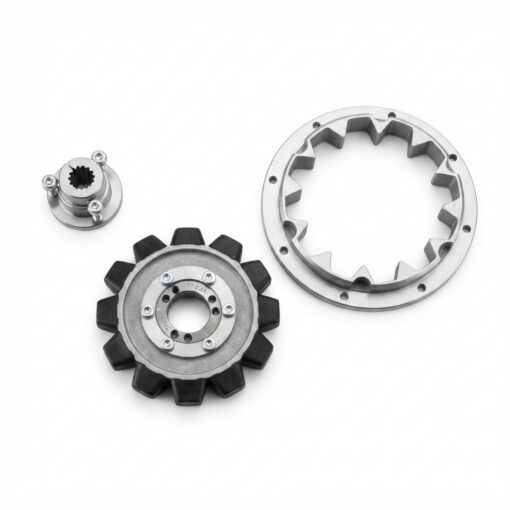

The Transfluid RBD 7S Elastic Coupling is an OEM coupling for industrial diesel engine drives on generators, pumps, and compressor packages. This is the complete assembly: the aluminum outer ring that bolts to the SAE J620 size 7-1/2 flywheel, the hub carrying twelve molded rubber blocks, and the QD-SH tapered bushing that locks it to the driven shaft. Torque passes through rubber in compression between internal and external teeth instead of metal on metal, and the outer ring takes up small angular and radial misalignment.

The rubber blocks are the wear item. As the compound hardens or cracks the coupling stops damping and passes torsional vibration straight into the driven equipment, which usually surfaces as failed bearings, fretted shafts, and leaking seals before the coupling itself comes apart. This is the factory component, dimensioned to fit the original mounting without modification.

• Factory OEM Transfluid coupling
• Rubber-in-compression drive isolates torsional shock from the driven machine
• Durable construction for long service life
• In stock and ready to ship – same day on orders placed by 2:00 PM CST

Stark Industrial Products stocks factory OEM parts with fast shipping and expert support.

Also written as: AIB2677C000, AIB 2677 C000, RBD 7S, RBD-7S, RBD7S

Need Help?

Not sure if this is the right part for your machine?

• Call Us: (903) 825-7890
• Email Us: starkindustrialproducts@gmail.com
• Live Chat: Available 24/7

Have your equipment make, model, and serial number handy and we will confirm the correct part.

Shipping & Returns

In-stock orders placed by 2:00 PM CST ship the same business day.

Returns accepted within 30 days on uninstalled parts in original condition.

Why OEM Matters

Factory OEM components are built to exact manufacturer specifications for reliable performance, long service life, and minimal downtime.

• Exact fit and function
• Made to the original manufacturer specification
• Reliable performance
• Longer service life
